Flashing USB dongle CC2531 Koenk firmware with Raspberry Pi

Hardware Connection

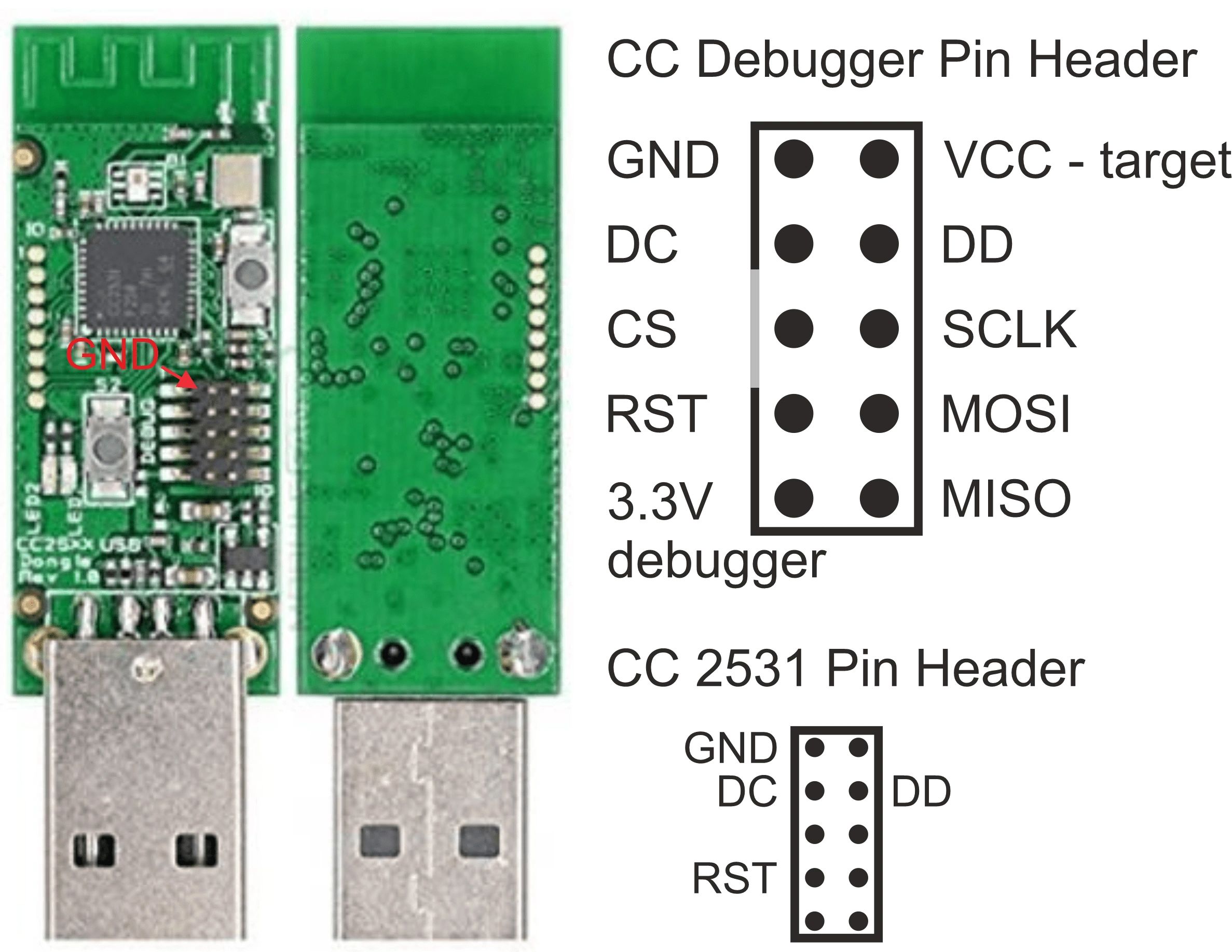

You need a soldering iron and 4 jumper cables. Then, solder 4 wires to the pins: GND, DC, DD and RST of the CC2531 header (see CC2531 Pin Header in Fig. 1a). The header is very small and you can bend the pins a little, if you cannot solder them directly.

However, if you are not good at soldering, or if you don't have any soldering iron, you can buy the following adapter:

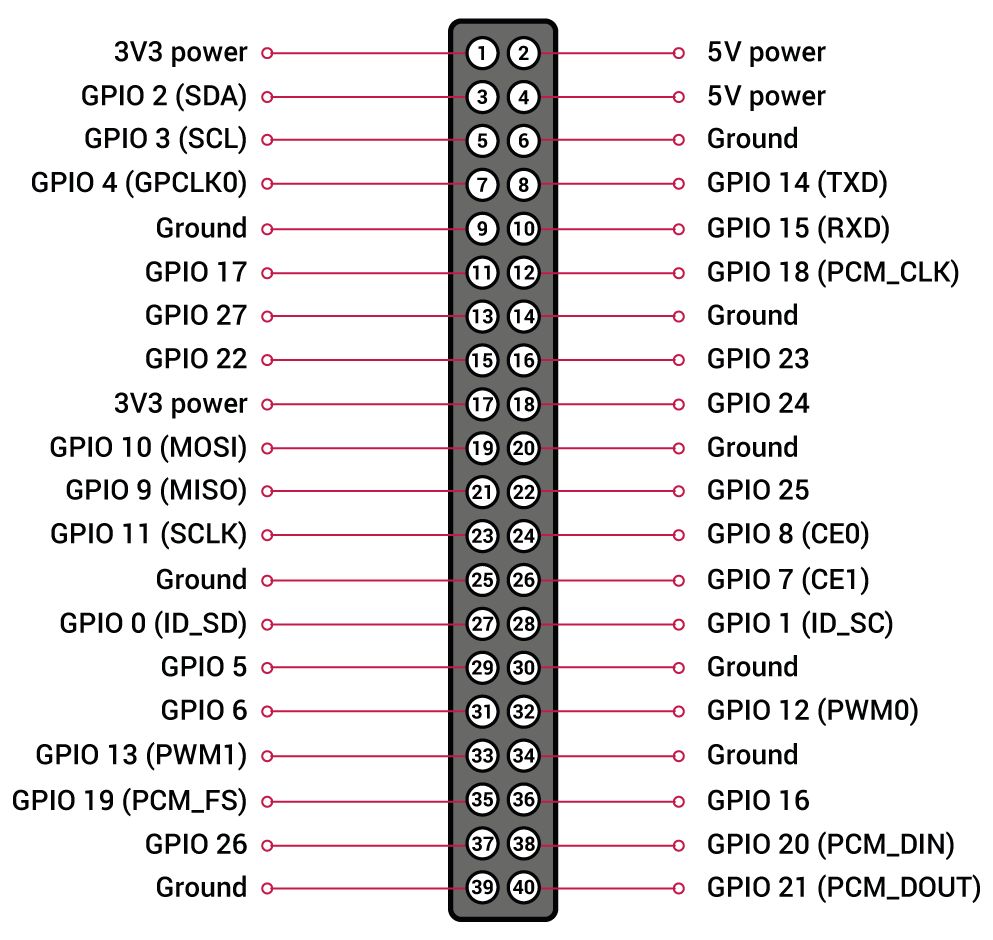

The adapter connects using a flat cable to the CC2531 and it has a bigger pin header on board side. Thus, you can connect the female jumper connectors directly to that header (see CC Debugger Pin Header in Fig. 1a). It doesn't matter which option you have chosen (solder or adapter), but then, connect the other end of the wires to the Raspberry Pi header (see Fig. 1b) as described in the following table:

Raspberry Pi CC2531
GND GND
Pin 38 DD
Pin 36 DC
Pin 35 RST

After connecting the CC2531 header to the Raspberry Pi headers, plug the USB dongle to a USB port of the Raspberry Pi and then, power up the Raspberry Pi.

If you use the flexible flat cable (FFC) provided with the adapter and you want to connect male jumper connectors from there to the Raspberry Pi, please be aware that connection is not described in Fig. 1a (CC Debugger Pin Header). You need to mirror it.
Pinout CC2531 Pinout Raspberry Pi

Flashing the CC2531

  1. On the Raspberry Pi, check if you have already installed Wiring Pi typing: gpio -v in the terminal. If not, install it following these instructions.
  2. Clone the jmichault/flash_cc2531 repository typing the following:
    git clone https://github.com/jmichault/flash_cc2531.git
  3. Go inside the flash_cc2531 folder and check if the Zigbee-USB dongle is wired correctly and if it's identified:
    cd flash_cc2531
./cc_chipid
  4. You should see ID=b524. If you get any other text (e.g. 0000 or ffff), re-check your wiring.
  5. Download the latest firmware from Koenkk/Z-Stack-firmware.
    wget https://github.com/Koenkk/Z-Stack-firmware/archive/master.zip
unzip Z-Stack-firmware-master.zip
# (**)
cd Z-Stack-firmware-master/coordinator/Z-Stack_Home_1.2/bin/default/
# (*)
unzip CC2531_DEFAULT_<<yyyymmdd>>.zip
  6. Erase the CC2531 flash with ./cc_erase
  7. Flash the firmware using ./cc_write /path/to/CC2531ZNP-Prod.hex. This will take about 3 min.
  8. Disconnect the wires/adapter and reboot the Raspberry Pi
(*) Note 1: change yyyymmdd with the actual date of the file (check it here: /bin/default, /bin/source_routing).

(**) Note 2: I used the default version of the Z-Stack coordinator. But:
  • a. If you have a network of 1 - 30 devices, the Z-Stack_Home_1.2 /bin/default firmware is recommended.
  • b. If you have a network of 30+ devices, the Z-Stack_Home_1.2 /bin/source_routing firmware is recommended.
This changes the folder and file in step 5. More info available here.


Use other pins:

all commands accept the following arguments:

  • -c pin: change the DC pin (default 27)

  • -d pin: change the DD pin (default 28)

  • -r pin: change the reset pin (default 24)

  • -m : change the delay multiplier, and therefore the base time (default: automatic adjustment)

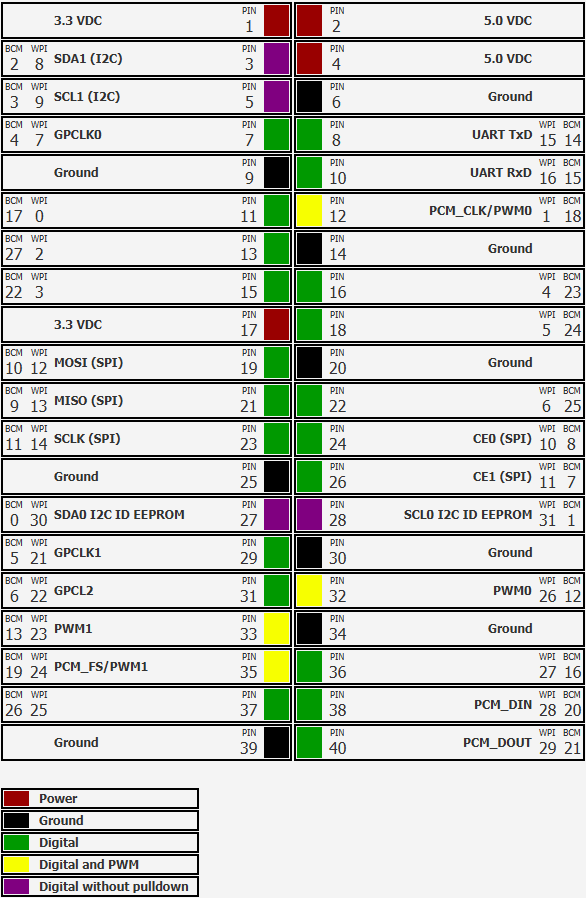

the pin numbering used is that of wiringPi . use gpio readallto have the arrangement in your Raspberry (column wPi ).

For example, if you want to use pins 11, 13 and 15:
Connect the following pins from debug port to GPIO port :

Colors for my downloader cable!!!

  1. pin 1 ( GND ) -> pin 9 ( GND )  BROWN

  2. pin 7 ( reset ) -> pin 11 ( wPi 0, BCM017) GREEN

  3. pin 3 ( DC ) -> pin 13 ( wPi 2, BCM27) YELLOW

  4. pin 4 ( DD ) -> pin 15 ( wPi 3, BCM22) WHITE

and now you can read ID, save, erase and write flash memory with the following commands:

./cc_chipid -r 0 -c 2 -d 3 -m 300
./cc_read -r 0 -c 2 -d 3 -m 300 save.hex
./cc_erase -r 0 -c 2 -d 3 -m 300
./cc_write -r 0 -c 2 -d 3 -m 300 CC2531ZNP-Prod.hex

Use the "-m 300" option to increase the timeouts used for RPi 1B.
